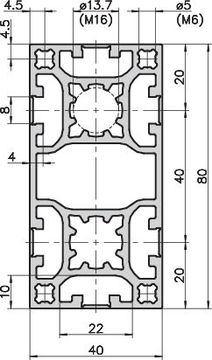

BASE PROFILE 40 mm - FOUR SIDED SOFTLINE EXTRUSION 40x80 (C10-3)

参考 C10-3-02-02/200

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

询价

Same intended use as C10–0 but with greater stability because of the dimension 40x80mm.

Catalogue Page (PDF) Extrusion machining information (PDF)

Reference	Ix (cm⁴)	Iy (cm⁴)	Wx (cm³)	Wy (cm³)	Cross-section area (cm²)	Weight (kg/m)
C10-3	69.73	18.52	17.43	9.26	10.34	2.8

More products - Description	More products - Part number
FOUR SIDED SOFTLINE EXTRUSION 40x40	C10-0
FOUR SIDED SOFTLINE EXTRUSION 80x80	C10-4

Matching accessories - Description	Matching accessories - Part number
CONNECTOR	C20-90
THREADED PLATE	AC32-60
LIGHT EXTRUSION NUT	C32-65
END CAP	C40-30
THREADED INSERT BASE	A33-20
FOOT PLATE	C80-24
