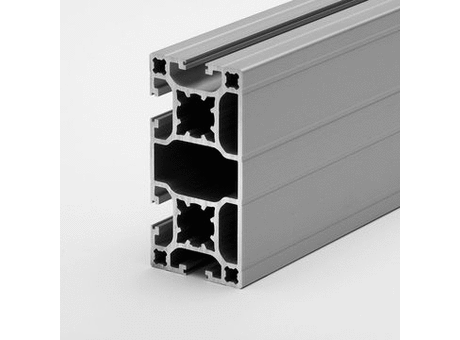

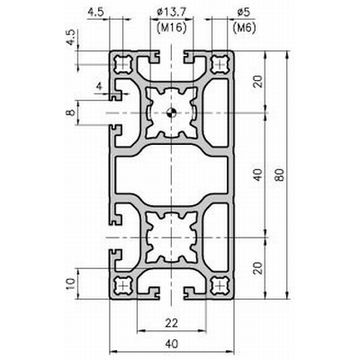

BASE PROFILE 40 mm - 40x80 FACE EXTRUSION (C01-5)

参考 C01-5-02-02/200

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

询价

Like all partially closed extrusions, this item is ideal if you want to keep your structure as clean as possible.

Catalogue Page (PDF) Extrusion machining information (PDF)

Reference	Ix (cm⁴)	Iy (cm⁴)	Wx (cm³)	Wy (cm³)	Cross-section area (cm²)	Weight (kg/m)
C01-5	64.4	17.2	16.1	8.6	9.76	2.6

More products - Description	More products - Part number
40x80 LIGHT EXTRUSION	C02-3
40x80 BASE EXTRUSION	C01-3

Matching accessories - Description	Matching accessories - Part number
CONNECTOR	C20-90
THREADED PLATE	AC32-60
LIGHT EXTRUSION NUT	C32-65
END CAP	C40-30
THREADED INSERT BASE	A33-20
FOOT PLATE	C80-24
