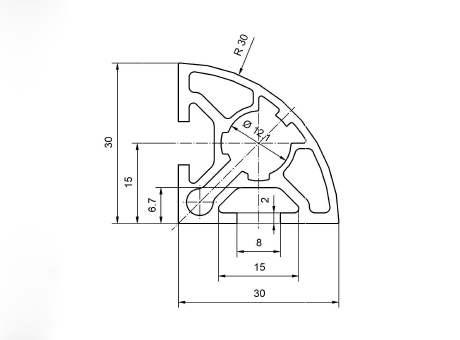

BASE PROFILE 30 mm - 30x30 SOFTLINE EXTRUSION (B01-8)

参考 B01-8-02-02/200

Delivery

Min length (mm)

Standard length (mm)

Length (mm)

Machining left (no model adjustment)

Machining right (no model adjustment)

Minimum length for Machining (mm)

询价

This extrusion is used to build furniture, display cases and other objects without obtrusive sharp edges.

Catalogue Page (PDF) Extrusion machining information (PDF)

Reference	Ix, y (cm⁴)	Wx, y (cm³)	Cross-section area (cm²)	Weight (kg/m)
B01-8	2.57	2.02	2.91	0.8

Matching accessories - Description	Matching accessories - Part number
CONNECTOR	B20-90
THREADED PLATE	B32-60
LIGHT EXTRUSION NUT	B32-65
END CAP	B40-80
THREADED INSERT BASE	B33-21
