BASE PROFILE 30 mm - BASE EXTRUSION 30x50 (B01-9)

参考 B01-9-02-02/200
Kanya Produkte Detaillierungsgrad 模型复杂程度 High  |  模型复杂程度 Low

商品描述

Used for all types of structures, base frames, trolleys, conveyor belts, etc. Universally used, easy to use in conjunction with extrusions with bases of 30, 40 or 50. This extrusion is sturdy and strong, despite using little aluminium.

Catalogue Page (PDF) Extrusion machining information (PDF)
Kanya - BASE PROFILE 30 mm - BASE EXTRUSION 30x50

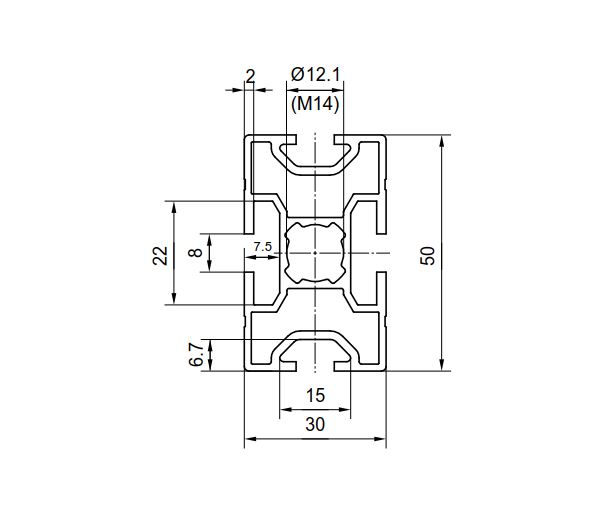

Dimensional Drawing

Product selection

Reference Ix (cm⁴) Iy (cm⁴) Wx (cm³) Wy (cm³) Cross-section area (cm²) Weight (kg/m)
B01-9 10.94 4.33 4.38 2.9 4.34 1.2
More products - Description More products - Part number
FACE EXTRUSION 30x50 MB2-9
30x50 FACE EXTRUSION WITH PANEL SLOTS MB1-9
Matching accessories - Description Matching accessories - Part number
CONNECTOR B20-90
THREADED PLATE B32-60
LIGHT EXTRUSION NUT B32-65
END CAP B40-90
THREADED INSERT BASE B33-21
