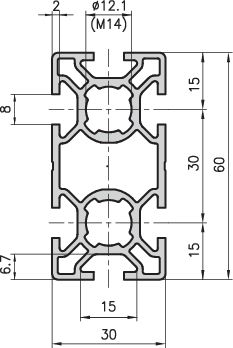

BASE PROFILE 30 mm - 30x60 BASE EXTRUSION (B01-6)
商品描述
Ideally suited for use as a cross-beam or for building lightweight conveyor belts. A versatile extrusion for many applications.
Product selection
| Reference | Ix (cm⁴) | Iy (cm⁴) | Wx (cm³) | Wy (cm³) | Cross-section area (cm²) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| B01-6 | 20.52 | 5.2 | 6.84 | 3.47 | 5.47 | 1.5 |
| More products - Description | More products - Part number |
|---|---|
| 30x60 FACE EXTRUSION WITH PANEL SLOTS | B03-6 |
