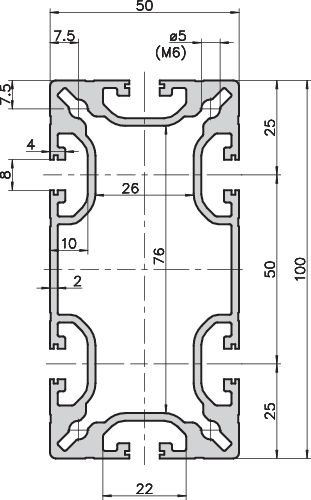

SPECIAL EXTRUSION - COUNTERWEIGHT EXTRUSION 50x100 (A19-2)
商品描述
Counterweights can be inserted into this extrusion for vertical sliding doors. This is a combination extrusion of base 40 + 50. The slots are based on the geometry of base 40 which is why base 40 accessories are the most suitable to use. This extrusion ca
Product selection
| Reference | Ix (cm⁴) | Iy (cm⁴) | Wx (cm³) | Wy (cm³) | Cross-section area (cm²) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| A19-2 | 41.82 | 16.43 | 8.36 | 6.57 | 12.33 | 3.33 |
