HINGE ALU, LIFT-OFF TYPE, RIGHT (C60-61)

参考 C60-61

商品描述

All types of swing doors and windows. The accurately machined hinges are very sturdy, swivel very effectively and last a long time.

  • Aluminium,matt, anodised in natural colours
  • Pin: zinc-coated steel
The fixing kit, which co

Kanya - HINGE ALU, LIFT-OFF TYPE, RIGHT

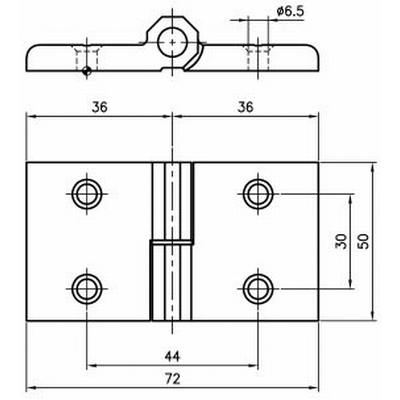

Dimensional drawing

Product selection

Part Number Description A B C E F D O
C60-61 HINGE ALU, LIFT-OFF TYPE, RIGHT 72 50 44 36 36 30 6,5
