CLAMPING BLOCK BASE 50/40/30 (B34-02)
商品描述
To connect two extrusions of base 30, 40 or 50 in parallel or crossing. Two blocks are required to create a parallel connection.
Product selection

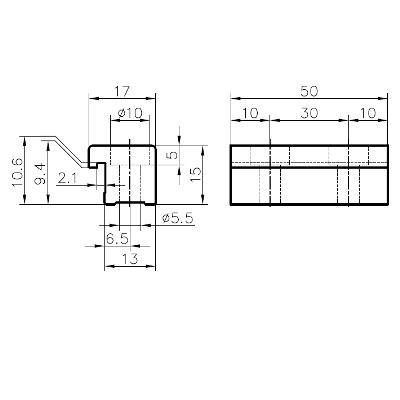

| Part Number | Description | A | B | C | E | F | H | L | Ø | t | ø | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B34-02 | CLAMPING BLOCK BASE 50/40/30 | 15 | 17 | 20 | 6,5 | 2,1 | 10,6 | 50 | 10 | 5 | 5,5 | M5 |
