ATTACHMENT BRACKET 45x45x20 (A30-86)
商品描述
The fixing angle is used to mount additional equipment, panelling, worktops, valves, electrical switchgear, etc. The advantage of these is that they are slotted on one side, allowing fine adjustment.
Product selection

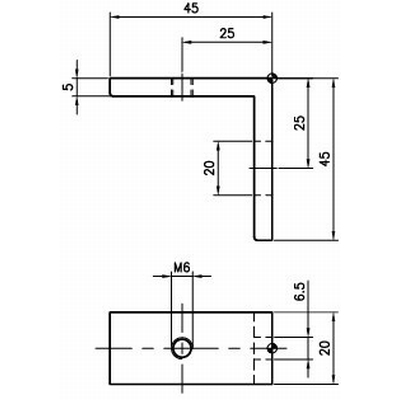

| Part Number | Description | A | B | C | E | ø | M | D | S | Txt |
|---|---|---|---|---|---|---|---|---|---|---|
| A30-86 | ATTACHMENT BRACKET 45x45x20 | 45 | 45 | 20 | 25 | 6,2 | M6 | 25 | 5 | 20x6,5 |
