Extrusion Connecting System
Large range of base extrusion, four-sided extrusion, light and heavy extrusion as well as special extrusion. The aluminium extrusions are compatible across all sizes (20, 30, 40, 45, 50) and can also be anodised and powder-coated in the desired colours. The various connectors offer unlimited construction possibilities. A selection of over 1,500 accessories rounds off the extensive range.
To proceed to download, enter your personal data.
LEVELLING FEET 39MM, M10x75 (B43-11)
Description
These continuously variable levelling feet are used for many different applications. The cup is attached in such a way as to compensate for uneven floors.
![LEVELLING FEET 39MM, M10x75 Kanya - LEVELLING FEET 39MM, M10x75](https://ws.tracepartsonline.net/PartsDefs/Production/KANYA_1829709657/90-03052019-044622/Pictures/90-03052019-044622L.gif)

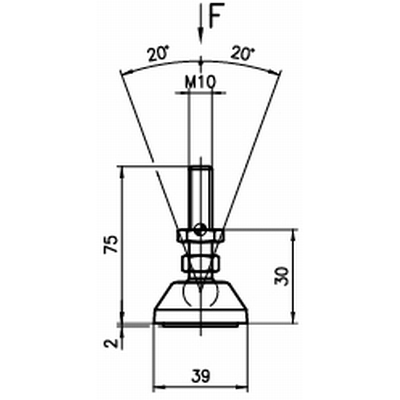

![Dimensional drawing Dimensional drawing](https://ws.tracepartsonline.net/PartsDefs/Production/KANYA_1829709657/90-03052019-044622/Documents/B43-11.jpg)
Product selection
Part Number | Description | F | H | D | MxL |
---|---|---|---|---|---|
B43-11 | LEVELLING FEET 39MM, M10x75 | 3000N | 30 | 39 | M10x75 |
